200tdi 12L with 300tdi VVT and shorty R380

donb

Well-known member
Selling the drivetrain out of my 110 to make room for the R2.8 to go in.

I bought this Disco 200tdi off eBay in the summer of 2018.

The install thread is here: https://nas-row.com/index.php?threads/discovery-200tdi-into-defender.2343/

Compression test before I installed had 400-450 psi in all cylinders.

These parts were new in 2018:

Turbo Technics VVT for 300tdi
2.5" stainless downpipe with 2 v-band clamps
Glencoyne Engine Mounts
machined flywheel
clutch - HD - PLL779 - Rovers North
Flywheel gasket - PLX233 - Rovers North
oil cooler lines ERR1913 and ERR1912 - Rovers North
RN 200tdi Radiator - PLD496 - Rovers North
Glow plugs - PLH391 - Rovers North
Land Rover Timing Belt - Rovers North
Timing Belt Tensioner - PLL539 - Rovers North
Timing Belt Idler Pulley - PLL535 - Rovers North
Glow Plug Wire - AMR2425 - Rovers North
Water Pump - PLN036 - Rovers North
Drive Belt - ETC7469 - Rovers North
Thermostat Housing - ETC5967 - Rovers North
EGT probe
powercoated intake
powdercoated valve cover
ceramic coated exhaust
alternator
vibration damper PLQ425 - Rovers North
bolt crankshaft pulley ERR605 - Rovers North
300tdi dipstick ERR3809
Glowplug Relay PLL637
ERR2532 - Rear Oil Seal - TURNER ENGINEERING PARTS
ERR913 - T Seal - TURNER ENGINEERING PARTS
ERR1440 - Flywheel to Block - TURNER ENGINEERING PARTS
BTR982 - Heater Hose - TURNER ENGINEERING PARTS

Installed in 2019:
thicker eBay intercooler
Donaldson M002118 air filter clamps
Donaldson 546743 air filter
Stanadyne FM100 Fuel Filter setup
Revotec Electric Fan kit - Jan 2019
Valve cover gasket - March 2019
-6 AN Lines and fittings to IP

Approximately - 3,000 miles since 200tdi install

R380 Shorty
Serial: 55A60623008J
Purchased Sept 2014 from David Dearborn/Urban Land Cruisers
But didn't start using until 2016 after I finished the build of the 110. It was first behind an OM617
Approximately 5,000 miles on gearbox
Redlne fluid

$4,000


Attachments

  • IMG_2792.jpg
    264.7 KB · Views: 82
  • IMG_2796.jpg
    246 KB · Views: 79

donb

Well-known member
more pictures

- FM100 and -6AN lines
- VDO twin sender
- Revotec electric fan and YRM shroud
- ebay intercooler
- Revotec
- front of engine
- downpipe with flex section


Attachments

  • IMG_2793.jpg
    261.6 KB · Views: 56
  • IMG_2794.jpg
    209.9 KB · Views: 56
  • IMG_2795.jpg
    184.7 KB · Views: 55
  • IMG_2797.jpg
    190.4 KB · Views: 52
  • IMG_2798.jpg
    142.5 KB · Views: 56
  • IMG_2799.jpg
    208.2 KB · Views: 60
  • IMG_2801.jpg
    238.5 KB · Views: 57
  • IMG_2806.jpg
    224 KB · Views: 59

donb

Well-known member
Wow, that’s a killer deal.
Thanks Clay - I tried to use really good parts throughout (all of the hose clamps are the same style stainless ones from West Marine and the IC hose clamps are from Summit Racing). I know it's a 12L Disco engine but I figured the R380 shorty and the Turbonetics VVT would be good value. Along with the Glencoyne mounts, Revotec fan with all the 2 year old cooling system pieces.

It's setup for LHD but should be able to do RHD without much issue.

I have a 1.4 LT230 I can include as well.


1of40

Well-known member
Thanks Clay - I tried to use really good parts throughout (all of the hose clamps are the same style stainless ones from West Marine and the IC hose clamps are from Summit Racing). I know it's a 12L Disco engine but I figured the R380 shorty and the Turbonetics VVT would be good value. Along with the Glencoyne mounts, Revotec fan with all the 2 year old cooling system pieces.

It's setup for LHD but should be able to do RHD without much issue.

I have a 1.4 LT230 I can include as well.
This set up is sweet. People that have not done a swap b4 should really consider it bc the time and effort to source what you have on a platter they can’t imagine.


donb

Well-known member
A couple photos I took in the garage the other day with the lights on it and hood all the way opened



Attachments

  • IMG_2866.jpg
    231.5 KB · Views: 43
  • IMG_2867.jpg
    257.9 KB · Views: 43

KorytheLorry

New member
Nice setup! I'm interested. Is the current setup compatible with installation in a Disco 1? I have a 1998 4.0 with an R380. I'd like to replace the 4.0 with a 200 or 300 TDI. I've done a handful of motor swaps in other vehicles (most recently fitting a Perkins diesel in my IIA 88), but never in Disco. I'm obviously not expecting everything to bolt right in, but am curious about obvious & major interferences.


donb

Well-known member
Nice setup! I'm interested. Is the current setup compatible with installation in a Disco 1? I have a 1998 4.0 with an R380. I'd like to replace the 4.0 with a 200 or 300 TDI. I've done a handful of motor swaps in other vehicles (most recently fitting a Perkins diesel in my IIA 88), but never in Disco. I'm obviously not expecting everything to bolt right in, but am curious about obvious & major interferences.

Thanks.

I am not sure how it would go into a Disco coming from a 4.0.

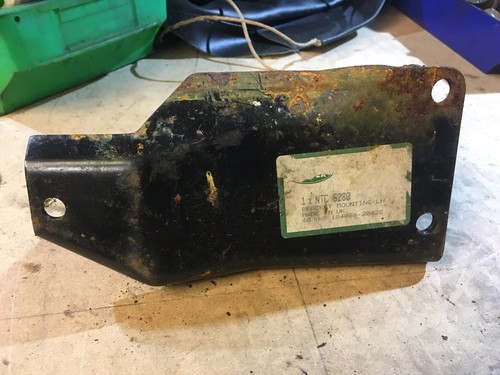

I did some searching and the Discovery/Range Rover engine mounts are NTC6280 (LH) and NTC6281 (RH). Then you would have to figure if the V8 frame mounts and 200tdi frame mounts are in the same location and the same shape.


Also this engine has the 300tdi turbo setup. Exhaust exit is in the front where as the Discovery 200tdi is in the rear.

I may have the original 200tdi exhaust manifold and turbo but would have to check.

And this gearbox is an R380 shorty I believe the Discovery 200tdi's had long bellhousing versions.

This is for the Discovery into Defender but might have the information for your setup if you read it "backwards"



Attachments

  • discovery_engine_mount.jpg
    55.9 KB · Views: 27
  • discovery_engine_mount_rtc.jpg
    26.3 KB · Views: 26

donb

Well-known member
I have the original intake and exhaust/turbo items I will include with the sale.


Attachments

  • manifold_intake_200tdi_disco.jpg
    332.5 KB · Views: 35

KorytheLorry

New member
Thanks for sending all that literature. I'll try to get through it in the next day or so. But with the original manifold, and the fact I have a disco R380 I can take parts from, nothing major jumps out at me.


donb

Well-known member
Thanks for sending all that literature. I'll try to get through it in the next day or so. But with the original manifold, and the fact I have a disco R380 I can take parts from, nothing major jumps out at me.
I think the gas and diesel R380's are different so I would look into that as well. But you might be able to swap the shorty for a long BH one pretty easily.


donb

Well-known member
Bump - I'll have this engine/tranny out soon and would like to not trip over it while installing the R2.8

$3,000 and will include the 1.4 LT230 I had pulled from another 110 last fall.

Located in central NJ - I can delivery within a 200 mile range for a fuel/toll money.
