Old 08-31-2018, 12:04 PM   #1
NPT90
Senior Member

NPT90's Avatar

Join Date: Jan 2017
Location: MD
Posts: 327
Thanks: 18
Thanked 26 Times in 24 Posts
Default Stereo Setup for single DIN ROW/NAS

So I have been putting together some pieces on this as to what my stereo setup will be.

Lots to consider given the limited space on a defender dashboard.

Basically I have toyed with so many options but have come up with what I think might be the best possible solution:

Alpine Halo 9

Seems like at its lowest setting and as forward as possible it might actually sit below the crash pad, which would be a very clean install
Install guide

I believe it will fit in a LR single DIN holder

Few questions, does anyone have a stock LR holder mounted they could approximate angle on? The guide specifies not to install the head unit at any more than 30 degrees can damage the unit

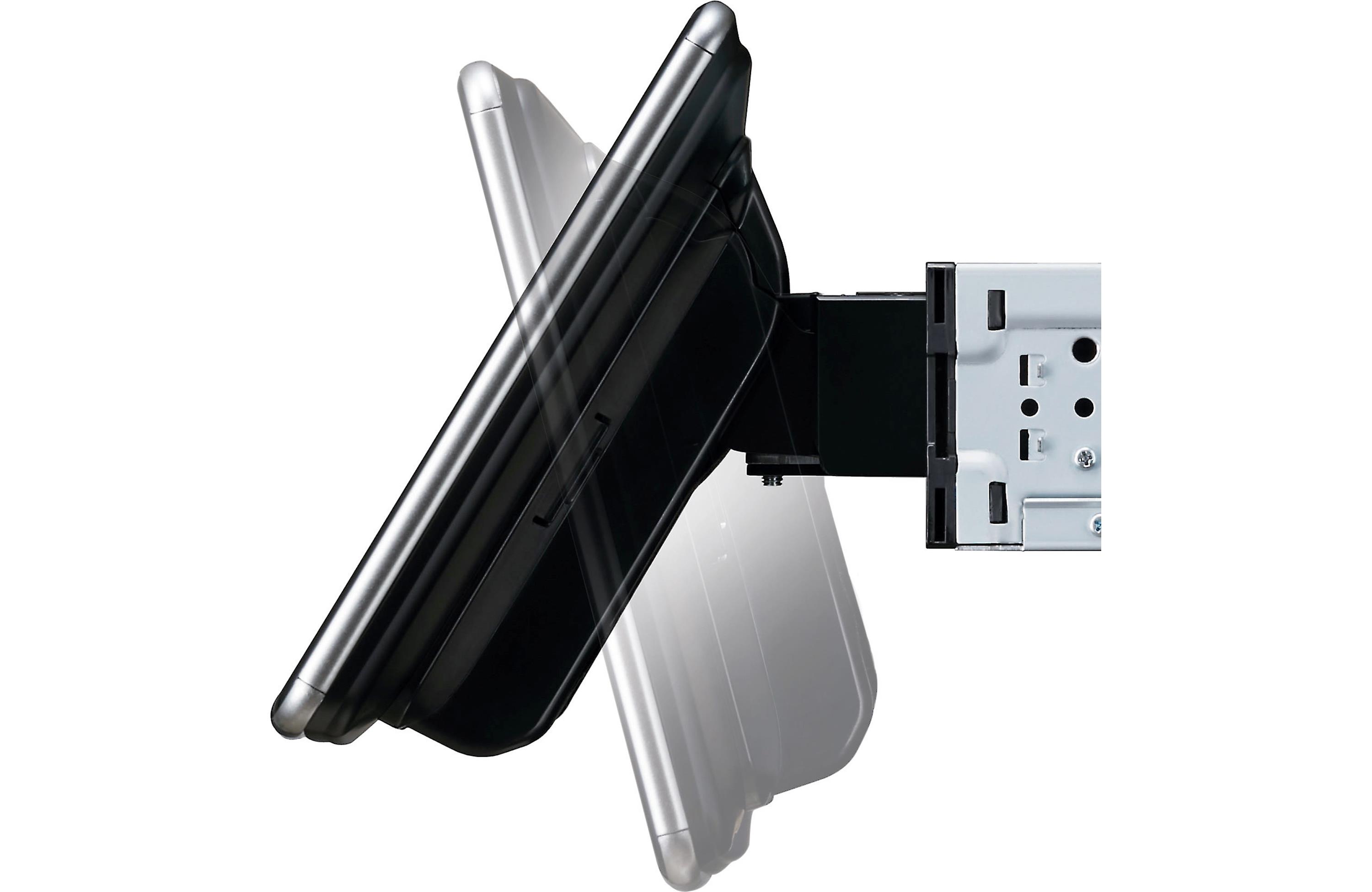

Also it appears you can get the full down travel at a 20 degree screen angle

Basically I am polling for the measurements of anyone who has a single din mounted in their truck currently DIAGRAM

Obviously this is an expensive option. I am considering it primarily because this Alpine head unit supports multiple cameras but also since it has the ability to add:
Sirius Tuner
Alpine KAC-001 Accessory Controller
This controller allows you to add up to 8 relay powered accessories to the radio control interface.

It's interesting in the sense that you could power things like a winch in/out, external lights, things like heated seats and more from a single source vs many switches.

$200 is pretty steep but carling switches aren't free and space is at a premium on the defender dash unless you opt for a mudstuff or similar center console.

Cons:
Obviously Cost. unit is trending at $900.
By the time you add a
(1) Rearview Camera ($100)
(2) Accessory control unit ($200)
(3) Amplifier (none built it, $130)
(4) single Din holder ($50)
(5) associated but often overlooked BS ($100)

this system could easily run you $1500 without components.

However once you start pricing out these things separately it's not a bad one and done project that would modernize any defender

Thoughts?
NPT90 is offline   Reply With Quote
Old 08-31-2018, 12:09 PM   #2
AdamSanta85
Senior Member

AdamSanta85's Avatar

Join Date: Nov 2016
Location: Long Island, NY
Posts: 678
Thanks: 360
Thanked 111 Times in 95 Posts
Member Trucks
Default

I can't wait to see one of these in a Defender. I think about it often.
AdamSanta85 is offline   Reply With Quote
Old 08-31-2018, 12:13 PM   #3
NPT90
Senior Member

NPT90's Avatar

Join Date: Jan 2017
Location: MD
Posts: 327
Thanks: 18
Thanked 26 Times in 24 Posts
Default

it looks like it would fit perfectly and sit right above the binnacle and take up that useless space above the wire cover
NPT90 is offline   Reply With Quote
The Following User Says Thank You to NPT90 For This Useful Post:
AdamSanta85 (08-31-2018)
Old 08-31-2018, 12:16 PM   #4
AdamSanta85
Senior Member

AdamSanta85's Avatar

Join Date: Nov 2016
Location: Long Island, NY
Posts: 678
Thanks: 360
Thanked 111 Times in 95 Posts
Member Trucks
Default

Quote:
Originally Posted by NPT90 View Post
it looks like it would fit perfectly and sit right above the binnacle and take up that useless space above the wire cover
I posted a photoshop I did of it on DSource at one point, but I can't find it. Looked great.
AdamSanta85 is offline   Reply With Quote
Old 08-31-2018, 12:20 PM   #5
NPT90
Senior Member

NPT90's Avatar

Join Date: Jan 2017
Location: MD
Posts: 327
Thanks: 18
Thanked 26 Times in 24 Posts
Default

yeah I just need to have someone take the angle and the measurements of their single din console before I go too far down the rabbit hole
NPT90 is offline   Reply With Quote
Old 09-02-2018, 01:05 PM   #6
defender_verde
Member

defender_verde's Avatar

Join Date: Nov 2016
Location: Los Angeles
Posts: 38
Thanks: 0
Thanked 2 Times in 2 Posts
Member Trucks
Default

I'm doing this in my 110 restoration. Will update when this gets installed... Likely a few months off.
defender_verde is offline   Reply With Quote
Old 09-05-2018, 09:49 AM   #7
lmwong
Junior Member

lmwong's Avatar

Join Date: Mar 2017
Location: Nebraska
Posts: 19
Thanks: 2
Thanked 1 Time in 1 Post
Member Trucks
Default

I've been using a single DIN 8" Joying Android unit. Works great.

lmwong is offline   Reply With Quote
Old 09-05-2018, 10:43 AM   #8
NPT90
Senior Member

NPT90's Avatar

Join Date: Jan 2017
Location: MD
Posts: 327
Thanks: 18
Thanked 26 Times in 24 Posts
Default

interesting, the price point may be lower there but I appreciate the switching ability on the Alpine unit

Figure I will wait until next year when the price gets cut by a few hundred dollars
NPT90 is offline   Reply With Quote
Old 09-05-2018, 11:52 AM   #9
NPT90
Senior Member

NPT90's Avatar

Join Date: Jan 2017
Location: MD
Posts: 327
Thanks: 18
Thanked 26 Times in 24 Posts
Default

also site mods, someone needs to do automatic photo resizing for this forum lol
NPT90 is offline   Reply With Quote
Old 09-05-2018, 12:24 PM   #10
rocky
Senior Member

rocky's Avatar

Join Date: Nov 2016
Location: Boston
Posts: 857
Thanks: 115
Thanked 112 Times in 97 Posts
Default

Quote:
Originally Posted by NPT90 View Post
also site mods, someone needs to do automatic photo resizing for this forum lol
I ran into that the other day to. If you uploaded from a mobile, like I did, changing the size of the uploaded file from "Best" to something smaller makes a huge difference.
